- Place of Origin: China
- Brand Name: Smartech
- Model Number: 1325

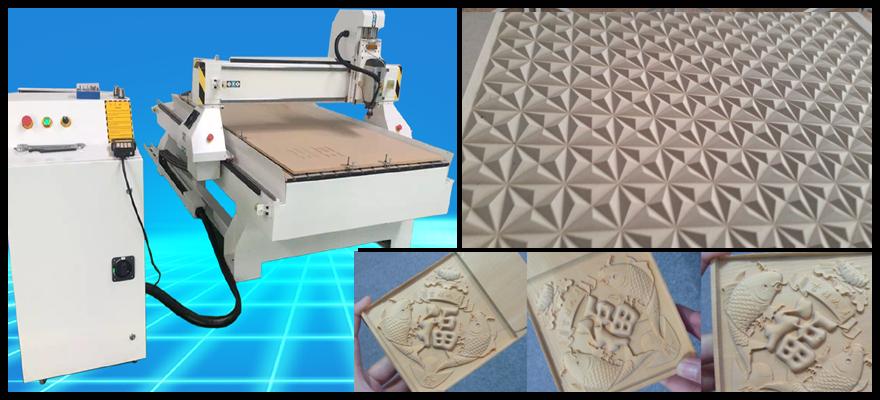

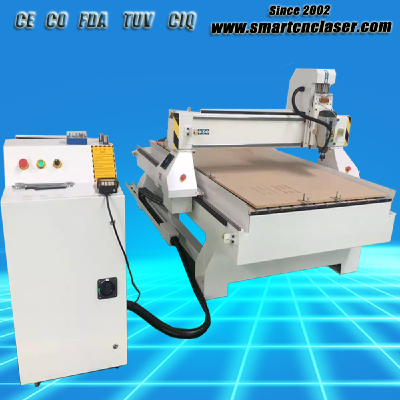

Smartec Woodworking CNC Router 1325
SSM1325 CNC Router
#working area:1300*2500*200mm
#3.0kW Water Cooling spindle -Chinese changsheng
#Hiwin 20 rails (Imported from Taiwan.)
#Japan Omron Limit Swith
#Cast Iron body(better than welded types)
#Taiwan TBI ball screw transmission(higher precision)
#DSP/Mach3/ nc studio controller
#T-slot aluminum profile
#Fuling inverter--Chinese
#Stepper Motor and Driver
#Filter(could control the conducted interference)
#water pump
#Tool Sensor
#software
#110V/220V/380V
Applicable materials
Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal materials and light metal materials.
- Place of Origin: China
- Brand Name: Smartech
- Model Number: 1325
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x200mm |
2 | Table Size | 1440×3040mm |
3 | X,Y,Z Traveling Positioning Accurate | ±0.03/300mm |
4 | X,Y,Z Repositioning Positioning Accurate | ±0.05mm |
5 | Lathe Structure | Cast Iron Structure |
6 | X, Y Structure | Gear Wheel Transmission,Shaft Linear Bearings |
7 | Z Structure | Ball Screw, shaft Linear Bearing |
8 | Max. Consume power | 6.5Kw |
9 | Max.Speed | 0-60000mm/min |
10 | Max. Working Speed | 0-40000mm/min |
11 | Spindle Power Motor | 3.0 kw spindle |
12 | Spindle Speed | 0-24000RPM |
13 | Motor | Stepper/Servo for option |
14 | Working Voltage | AC220V/50/60Hz,1PH (Option: 380V,3PH) |
15 | Command | G Code, *uoo, *mmg, *plt |
16 | Operating System | DSP System/mach3/nc studio |
17 | Interface | USB |
18 | Flash Memory | 128M |
19 | Collet | ER25,ER20 |
20 | X,Y Working DelicaIT | <0.01mm |
21 | Software | Artcam software |
22 | Running Circumstance | Temperature: 0℃～45℃ |
23 | Packing Size | Separated: 3200X1950X1404mm |
24 | Net Weight | 1500KG |
25 | Gross Weight | 1600KG |
